ELClient.h File Reference

Definitions for ELClient. More...

#include <avr/pgmspace.h>
#include <HardwareSerial.h>
#include <Arduino.h>
#include "ELClientResponse.h"
#include "FP.h"

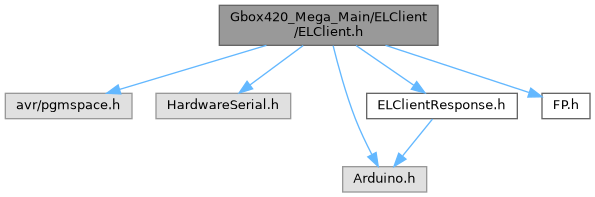

Include dependency graph for ELClient.h:

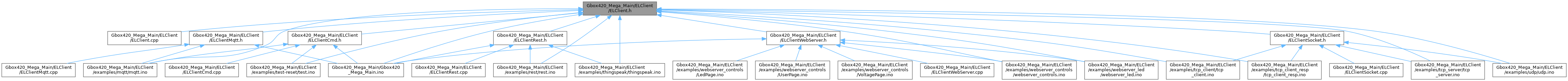

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ELClientProtocol
class	ELClient

Macros
#define	ESP_TIMEOUT   2000

Enumerations
enum	CmdName {   CMD_NULL = 0 , CMD_SYNC , CMD_RESP_V , CMD_RESP_CB ,   CMD_WIFI_STATUS , CMD_CB_ADD , CMD_CB_EVENTS , CMD_GET_TIME ,   CMD_MQTT_SETUP = 10 , CMD_MQTT_PUBLISH , CMD_MQTT_SUBSCRIBE , CMD_MQTT_LWT ,   CMD_REST_SETUP = 20 , CMD_REST_REQUEST , CMD_REST_SETHEADER , CMD_WEB_SETUP = 30 ,   CMD_WEB_DATA , CMD_SOCKET_SETUP = 40 , CMD_SOCKET_SEND }
enum	WIFI_STATUS {   STATION_IDLE = 0 , STATION_CONNECTING , STATION_WRONG_PASSWORD , STATION_NO_AP_FOUND ,   STATION_CONNECT_FAIL , STATION_GOT_IP }

Detailed Description

Definitions for ELClient.

Definition in file ELClient.h.

Macro Definition Documentation

ESP_TIMEOUT

#define ESP_TIMEOUT   2000

Default timeout for TCP requests when waiting for a response

Definition at line 14 of file ELClient.h.

Enumeration Type Documentation

CmdName

enum CmdName

Enumerator
CMD_NULL	null, mainly to prevent 0 from doing something bad
CMD_SYNC	Synchronize, starts the protocol
CMD_RESP_V	Response with a value
CMD_RESP_CB	Response with a callback
CMD_WIFI_STATUS	Get the wifi status
CMD_CB_ADD	Add a custom callback
CMD_CB_EVENTS	???
CMD_GET_TIME	Get current time in seconds since the unix epoch
CMD_MQTT_SETUP	Register callback functions
CMD_MQTT_PUBLISH	Publish MQTT topic
CMD_MQTT_SUBSCRIBE	Subscribe to MQTT topic
CMD_MQTT_LWT	Define MQTT last will
CMD_REST_SETUP	Setup REST connection
CMD_REST_REQUEST	Make request to REST server
CMD_REST_SETHEADER	Define HTML header
CMD_WEB_SETUP	web-server setup
CMD_WEB_DATA	used for publishing web-server data
CMD_SOCKET_SETUP	Setup socket connection
CMD_SOCKET_SEND	Send socket packet

Definition at line 18 of file ELClient.h.

WIFI_STATUS

enum WIFI_STATUS

Enumerator
STATION_IDLE	Idle status
STATION_CONNECTING	Trying to connect
STATION_WRONG_PASSWORD	Connection error, wrong password
STATION_NO_AP_FOUND	Connection error, AP not found
STATION_CONNECT_FAIL	Connection error, connection failed
STATION_GOT_IP	Connected, received IP

Definition at line 45 of file ELClient.h.
