SerialLog.h File Reference

#include "Arduino.h"

Include dependency graph for SerialLog.h:

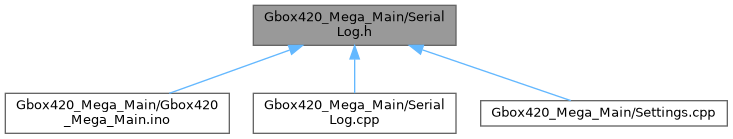

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	logToSerials (const __FlashStringHelper *ToPrint, bool BreakLine=true, uint8_t Indent=3)
	logs to both Arduino and ESP Link serial console, 2 optional parameters to adding a break line at after printing and the indentation in front
template<class logLine >
void	logToSerials (logLine *ToPrint, bool BreakLine=true, uint8_t Indent=3)
template<class logLine >
void	logToSerials (logLine &ToPrint, bool BreakLine=true, uint8_t Indent=3)

Variables
HardwareSerial &	ArduinoSerial
	Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)
HardwareSerial &	ESPSerial
	Reference to the ESP Link Serial output : Mega 2560 Rev3 Serial:0(RX) 1(TX), Serial1:19(RX1) 18(TX1), Serial2:17(RX2), 16(TX2), Serial4:15(RX3) 14(TX3)

Function Documentation

logToSerials() [1/3]

void logToSerials	(	const __FlashStringHelper *	ToPrint,
		bool	BreakLine,
		uint8_t	Indent
	)

logs to both Arduino and ESP Link serial console, 2 optional parameters to adding a break line at after printing and the indentation in front

logs to both Arduino and ESP Link serial console, 2 optional parameters to adding a break line at after printing and the indentation in front

Definition at line 5 of file SerialLog.cpp.

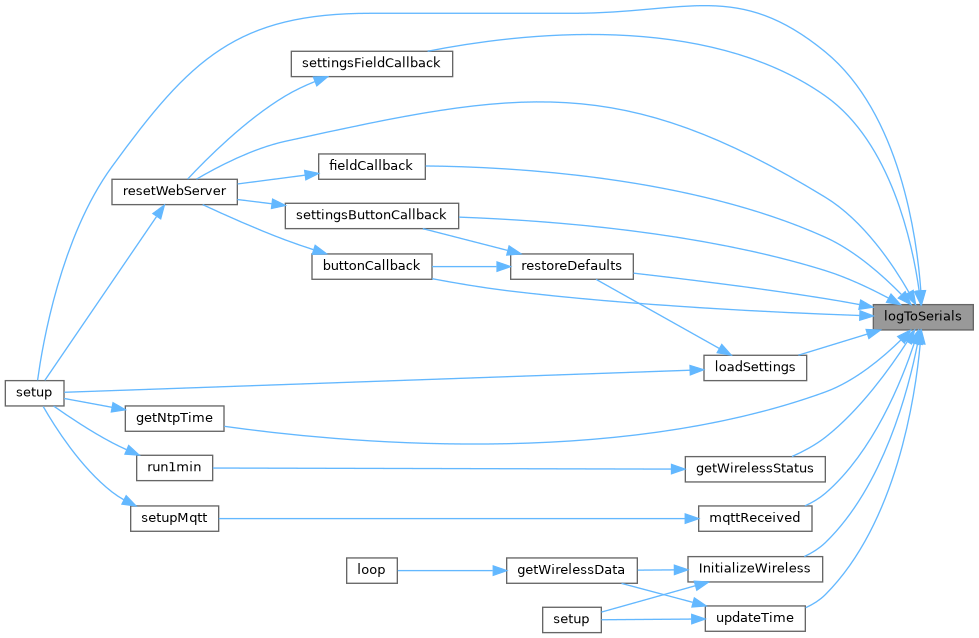

Here is the caller graph for this function:

logToSerials() [2/3]

template<class logLine >

void logToSerials	(	logLine &	ToPrint,
		bool	BreakLine = true,
		uint8_t	Indent = 3
	)

Definition at line 34 of file SerialLog.h.

logToSerials() [3/3]

template<class logLine >

void logToSerials	(	logLine *	ToPrint,
		bool	BreakLine = true,
		uint8_t	Indent = 3
	)

Definition at line 16 of file SerialLog.h.

Variable Documentation

ArduinoSerial

HardwareSerial& ArduinoSerial

extern

Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)

Uses templating to handle logging multiple variable types (int,float,char,bool..)

Functions implemented in header file due to: https://stackoverflow.com/questions/10632251/undefined-reference-to-template-function

Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)

Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)

Reference to the Arduino Serial

Definition at line 33 of file Gbox420_Mega_Main.ino.

ESPSerial

HardwareSerial& ESPSerial

extern

Reference to the ESP Link Serial output : Mega 2560 Rev3 Serial:0(RX) 1(TX), Serial1:19(RX1) 18(TX1), Serial2:17(RX2), 16(TX2), Serial4:15(RX3) 14(TX3)

ESP-link. Both SLIP and debug messages are sent to ESP over the ESP Serial link.

Definition at line 34 of file Gbox420_Mega_Main.ino.
