Aeroponics module without Pressure Tank for Nano. More...

#include "Arduino.h"
#include "avr/wdt.h"
#include "avr/boot.h"
#include "printf.h"
#include "Thread.h"
#include "StaticThreadController.h"
#include "SPI.h"
#include "RF24.h"
#include "SerialLog.h"
#include "Settings.h"
#include "src/Modules/AeroModule_NoTank.h"
#include "src/WirelessCommands_Aero.h"

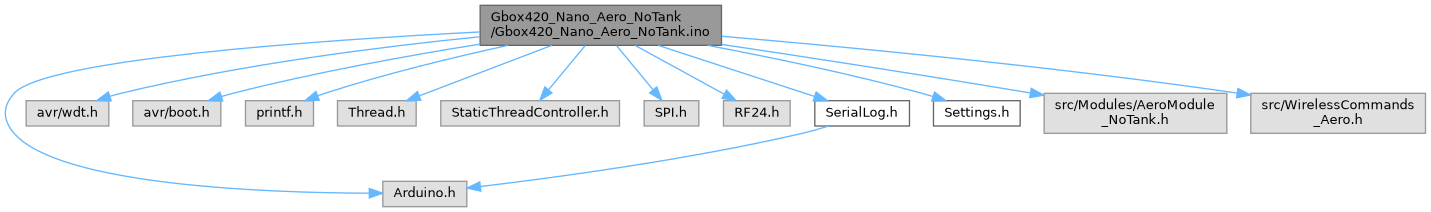

Include dependency graph for Gbox420_Nano_Aero_NoTank.ino:

Go to the source code of this file.

Functions
RF24	Wireless (WirelessCEPin, WirelessCSNPin)
	Initialize the NRF24L01 wireless chip (CE, CSN pins are hard wired on the Arduino Nano RF)

void	setup ()

void	InitializeWireless ()

void	loop ()
	Threads.

void	processTimeCriticalStuff ()

void	run1sec ()

void	run5sec ()

void	run1min ()

void	heartBeat ()
	Wireless communication.

void	getWirelessData ()

void	getWirelessStatus ()

time_t	updateTime ()

Variables
bool &	Debug = *new bool

bool &	Metric = *new bool

char	LongMessage [MaxLongTextLength] = ""
	Temp storage for assembling long messages (REST API, MQTT reporting)

char	ShortMessage [MaxShotTextLength] = ""
	Temp storage for assembling short text messages (Log entries, Error messages,etc)

char	CurrentTime [MaxWordLength] = ""
	Buffer for storing current time in text format.

void *	ReceivedMessage = malloc(WirelessPayloadSize)

uint32_t	ReceivedMessageTimestamp = millis()

HardwareSerial &	ArduinoSerial = Serial
	< Component initialization

Settings *	ModuleSettings
	settings loaded from the EEPROM. Persistent between reboots, defaults are in Settings.h

AeroModule *	AeroMod1
	Represents a Aeroponics tote with solenoid,pressure pump..etc.

Thread	TimeCriticalThread = Thread()

Thread	OneSecThread = Thread()

Thread	FiveSecThread = Thread()

Thread	MinuteThread = Thread()

Detailed Description

Aeroponics module without Pressure Tank for Nano.

To change the default pin layout / startup settings navigate to: Settings.h

Runs autonomously on an Arduino RF-Nano or Arduino Nano with an nRF24L01+ wireless transceiver.

Supports wireless data exchange with the Main module

Author: GrowBoxGuy - https://sites.google.com/site/growboxguy/

Version: 4.20

Definition in file Gbox420_Nano_Aero_NoTank.ino.

Function Documentation

◆ getWirelessData()

void getWirelessData ( )

< Updating internal timer

Definition at line 150 of file Gbox420_Nano_Aero_NoTank.ino.

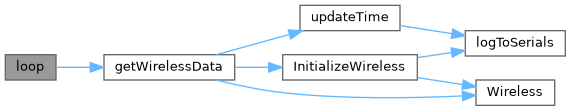

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWirelessStatus()

void getWirelessStatus ( )

Definition at line 170 of file Gbox420_Nano_Aero_NoTank.ino.

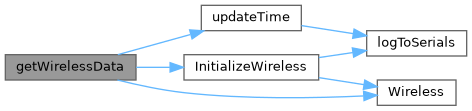

Here is the call graph for this function:

Here is the caller graph for this function:

◆ heartBeat()

void heartBeat ( )

Wireless communication.

Definition at line 141 of file Gbox420_Nano_Aero_NoTank.ino.

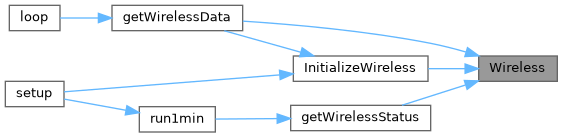

Here is the caller graph for this function:

◆ InitializeWireless()

void InitializeWireless ( )

< Set the speed to slow - has longer range + No need for faster transmission, Other options: RF24_2MBPS, RF24_1MBPS

< RF24_CRC_8 for 8-bit or RF24_CRC_16 for 16-bit

< RF24_PA_MIN=-18dBm, RF24_PA_LOW=-12dBm, RF24_PA_HIGH=-6dBm, and RF24_PA_MAX=0dBm.

< The number of bytes in the payload. This implementation uses a fixed payload size for all transmissions

< Not necessary, startListening should switch back to normal power mode

< Dump all previously cached but unsent ACK messages from the TX FIFO buffer (Max 3 are saved)

< Dump all previously received messages from the RX FIFO buffer (Max 3 are saved)

< Reset timeout counter

Definition at line 83 of file Gbox420_Nano_Aero_NoTank.ino.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loop()

void loop ( )

Threads.

< put your main code here, to run repeatedly:

< loop only checks if it's time to trigger one of the threads (run1sec(), run5sec(),run1min()..etc)

< If a control package is received from the main module

Definition at line 107 of file Gbox420_Nano_Aero_NoTank.ino.

Here is the call graph for this function:

◆ processTimeCriticalStuff()

void processTimeCriticalStuff ( )

Definition at line 116 of file Gbox420_Nano_Aero_NoTank.ino.

Here is the caller graph for this function:

◆ run1min()

void run1min ( )

Definition at line 134 of file Gbox420_Nano_Aero_NoTank.ino.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ run1sec()

void run1sec ( )

< reset watchdog timeout

< Blinks built-in led

Definition at line 121 of file Gbox420_Nano_Aero_NoTank.ino.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ run5sec()

void run5sec ( )

Definition at line 128 of file Gbox420_Nano_Aero_NoTank.ino.

Here is the caller graph for this function:

◆ setup()

void setup ( )

< put your setup code here, to run once:

< Nano console output

< onboard LED - Heartbeat every second to confirm code is running

< New line

< logs to the Arduino serial, adds new line after the text (true), and uses no indentation (0). More on why texts are in F(""): https://gist.github.com/sticilface/e54016485fcccd10950e93ddcd4461a3

< Watchdog timeout set to 8 seconds, if watchdog is not reset every 8 seconds it assumes a lockup and resets the sketch

< fix watchdog not loading sketch after a reset error on Mega2560

< Copy a blank command to the memory block pointed ReceivedMessage. Without this ReceivedMessage would contain random data

< Loading settings from EEPROM

< Setting up wireless module

< Threads - Setting up how often threads should be triggered and what functions to call when the trigger fires

< 100ms, 0.1sec

< 1000ms

< Create the Aeroponics object

< This is the main object representing an entire Grow Box with all components in it. Receives its name and the settings loaded from the EEPROM as parameters

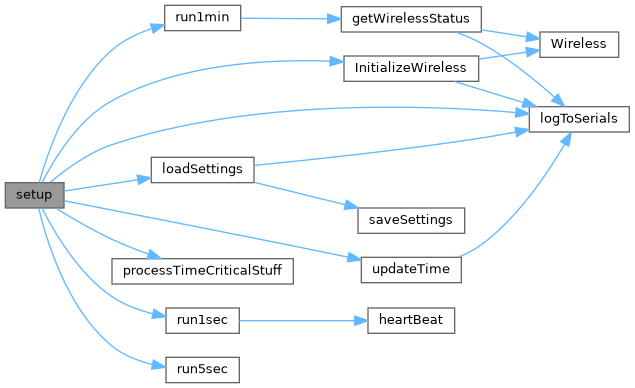

Definition at line 45 of file Gbox420_Nano_Aero_NoTank.ino.

Here is the call graph for this function:
