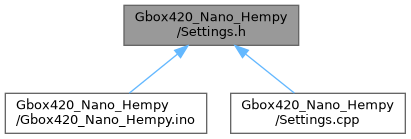

This graph shows which files directly or indirectly include this file:

Data Structures
struct	Settings

struct	Settings::HempyModuleSettings
	< Hempy default settings More...

struct	Settings::HempyBucketSettings
	< HempyBucket default settings More...

struct	Settings::SoundSettings
	< Sound default settings More...

struct	Settings::WaterPumpSettings
	< WaterPump default settings More...

struct	Settings::WeightSensorSettings
	< WeightSensor default settings More...

Functions
void	saveSettings (Settings *ToSave)
	Store settings in EEPROM - Only updates changed bits.

Settings *	loadSettings (bool ResetEEPROM=false)
	Load settings from EEPROM.

void	restoreDefaults ()
	Load sketch default settings into EEPROM.

Variables
constexpr uint8_t	Version = 16
	Default Settings for each component within the module. Loaded when the Arduino starts.

constexpr uint8_t	MaxWordLength = 32
	Default char * buffer length for storing a word + null terminator. Memory intense!

constexpr uint8_t	MaxShotTextLength = 64
	Default char * buffer length for storing mutiple words. Memory intense!

constexpr uint16_t	MaxLongTextLength = 168
	Default char * buffer length for storing a long text. Memory intense!

constexpr uint8_t	QueueDepth = 6
	Limits the maximum number of active modules. Memory intense!

char	LongMessage [MaxLongTextLength]
	Temp storage for assembling long messages (REST API, MQTT reporting)

char	ShortMessage [MaxShotTextLength]
	Temp storage for assembling short text messages (Log entries, Error messages,etc)

char	CurrentTime [MaxWordLength]
	Buffer for storing current time in text format.

constexpr uint8_t	WirelessCSNPin = 9
	< nRF24L01+ wireless receiver

constexpr uint8_t	WirelessCEPin = 10
	nRF24l01+ wireless transmitter CE pin - Pre-connected on RF-Nano

constexpr uint8_t	WirelessChannel [6] = {"Hemp1"}
	This needs to be unique and match with the Name of the HempyModule_Web object in the MainModule_Web.cpp.

constexpr uint8_t	WirelessPayloadSize = 32
	Size of the wireless packages exchanged with the Main module. Max 32 bytes are supported on nRF24L01+.

constexpr uint16_t	WirelessMessageTimeout = 500
	(ms) One package should be exchanged within this timeout (Including retries and delays)

constexpr uint16_t	WirelessReceiveTimeout = 60000
	(ms) If no packages are received from the Main module over this limit, try reseting the nRF24L01+ wireless receiver

Function Documentation

◆ loadSettings()

Settings * loadSettings ( bool ResetEEPROM )

Load settings from EEPROM.

Parameters

ResetEEPROM - Force loading the defaults from the sketch and overwriting the EEPROM with it

Returns: Reference to Settings object

Parameters

ResetEEPROM if the function contains arguments with default values, they must be declared strictly before they are called, otherwise there is a compilation error: '<function name> was not declared in this scope. https://forum.arduino.cc/index.php?topic=606678.0

Definition at line 20 of file Settings.cpp.

◆ restoreDefaults()

void restoreDefaults ( )

Load sketch default settings into EEPROM.

Attention: Restarts the Arduino sketch!

Definition at line 45 of file Settings.cpp.

◆ saveSettings()

void saveSettings ( Settings * ToSave )

Store settings in EEPROM - Only updates changed bits.

Attention: Use cautiously, EEPROM has a write limit of 100.000 cycles

Definition at line 10 of file Settings.cpp.

Variable Documentation

◆ CurrentTime

char CurrentTime[MaxWordLength]

extern

Buffer for storing current time in text format.

Definition at line 30 of file Gbox420_Mega_Main.ino.

◆ LongMessage

char LongMessage[MaxLongTextLength]

extern

Temp storage for assembling long messages (REST API, MQTT reporting)

Definition at line 28 of file Gbox420_Mega_Main.ino.

◆ MaxLongTextLength

constexpr uint16_t MaxLongTextLength = 168

constexpr

Default char * buffer length for storing a long text. Memory intense!

Definition at line 19 of file Settings.h.

◆ MaxShotTextLength

constexpr uint8_t MaxShotTextLength = 64

constexpr

Default char * buffer length for storing mutiple words. Memory intense!

Definition at line 18 of file Settings.h.

◆ MaxWordLength

constexpr uint8_t MaxWordLength = 32

constexpr

Default char * buffer length for storing a word + null terminator. Memory intense!

Definition at line 17 of file Settings.h.

◆ QueueDepth

constexpr uint8_t QueueDepth = 6

constexpr

Limits the maximum number of active modules. Memory intense!

Global variables

Definition at line 20 of file Settings.h.

◆ ShortMessage

char ShortMessage[MaxShotTextLength]

extern

Temp storage for assembling short text messages (Log entries, Error messages,etc)

Definition at line 29 of file Gbox420_Mega_Main.ino.

◆ Version

constexpr uint8_t Version = 16

constexpr

Default Settings for each component within the module. Loaded when the Arduino starts.

Settings are stored in EEPROM and kept between reboots. Stored values are updated by the website controls on user interaction.

Warning: EEPROM has a write limit of 100.000 cycles, constantly updating the variables inside a loop would wear out the EEPROM memory!

Attention: Update the Version number when you change the structure of the settings. This will overwrite the EEPROM stored settings with the sketch defaults from this file.

Author: GrowBoxGuy

Version: 4.20 Increment this after changing the stucture of the SAVED TO EEPROM section to force overwriting the stored settings in the Arduino's EEPROM. NOT SAVED TO EEPROM Global constants

Definition at line 12 of file Settings.h.

◆ WirelessCEPin

constexpr uint8_t WirelessCEPin = 10

constexpr

nRF24l01+ wireless transmitter CE pin - Pre-connected on RF-Nano

Definition at line 29 of file Settings.h.

◆ WirelessChannel

constexpr uint8_t WirelessChannel[6] = {"Hemp1"}

constexpr

This needs to be unique and match with the Name of the HempyModule_Web object in the MainModule_Web.cpp.

Definition at line 30 of file Settings.h.

◆ WirelessCSNPin

constexpr uint8_t WirelessCSNPin = 9

constexpr

< nRF24L01+ wireless receiver

nRF24l01+ wireless transmitter CSN pin - Pre-connected on RF-Nano

Definition at line 28 of file Settings.h.

◆ WirelessMessageTimeout

constexpr uint16_t WirelessMessageTimeout = 500

constexpr

(ms) One package should be exchanged within this timeout (Including retries and delays)

Definition at line 32 of file Settings.h.

◆ WirelessPayloadSize

constexpr uint8_t WirelessPayloadSize = 32

constexpr

Size of the wireless packages exchanged with the Main module. Max 32 bytes are supported on nRF24L01+.

Definition at line 31 of file Settings.h.

◆ WirelessReceiveTimeout

constexpr uint16_t WirelessReceiveTimeout = 60000

constexpr

(ms) If no packages are received from the Main module over this limit, try reseting the nRF24L01+ wireless receiver

SAVED TO EEPROM - Settings struct If you change things here, increase the Version variable in line 12

Definition at line 33 of file Settings.h.
