Settings.h File Reference

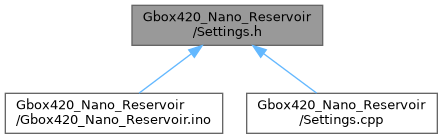

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Settings
struct	Settings::ReservoirModuleSettings
	< ReservoirModule default settings More...
struct	Settings::DHTSensorSettings
	< DHTSensor default settings More...
struct	Settings::PHSensorSettings
	< PHSensor default settings More...
struct	Settings::TDSSensorSettings
	< PHSensor default settings More...
struct	Settings::SoundSettings
	< Sound default settings More...
struct	Settings::WaterTempSensorSettings
	< WaterTempSensor default settings More...
struct	Settings::WeightSensorSettings
	< WeightSensor default settings More...

Functions
void	saveSettings (Settings *ToSave)
	Store settings in EEPROM - Only updates changed bits.
Settings *	loadSettings (bool ResetEEPROM=false)
	Load settings from EEPROM.
void	restoreDefaults ()
	Load sketch default settings into EEPROM.

Variables
char	LongMessage [MaxLongTextLength]
	Temp storage for assembling long messages (REST API, MQTT reporting)
char	ShortMessage [MaxShotTextLength]
	Temp storage for assembling short text messages (Log entries, Error messages,etc)
char	CurrentTime [MaxWordLength]
	Buffer for storing current time in text format.

Function Documentation

loadSettings()

Settings * loadSettings

(

bool

ResetEEPROM

)

Load settings from EEPROM.

Parameters

ResetEEPROM

- Force loading the defaults from the sketch and overwriting the EEPROM with it

Returns

Reference to Settings object

Parameters

ResetEEPROM

if the function contains arguments with default values, they must be declared strictly before they are called, otherwise there is a compilation error: '<function name> was not declared in this scope. https://forum.arduino.cc/index.php?topic=606678.0

Definition at line 20 of file Settings.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

restoreDefaults()

void restoreDefaults

(

)

Load sketch default settings into EEPROM.

Attention

Restarts the Arduino sketch!

Definition at line 45 of file Settings.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

saveSettings()

void saveSettings

(

Settings *

ToSave

)

Store settings in EEPROM - Only updates changed bits.

Attention

Use cautiously, EEPROM has a write limit of 100.000 cycles

Definition at line 10 of file Settings.cpp.

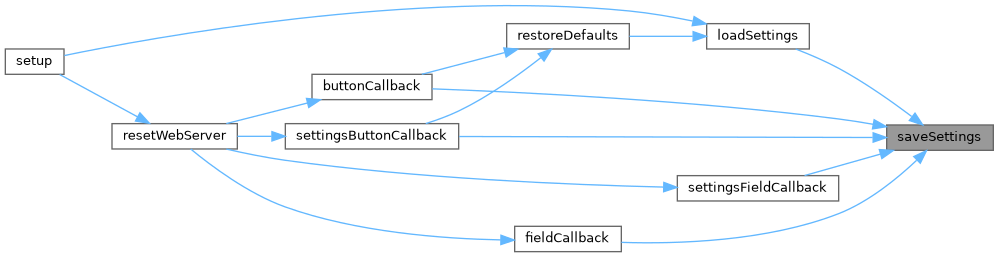

Here is the caller graph for this function:

Variable Documentation

CurrentTime

char CurrentTime[MaxWordLength]

extern

Buffer for storing current time in text format.

Definition at line 30 of file Gbox420_Mega_Main.ino.

LongMessage

char LongMessage[MaxLongTextLength]

extern

Temp storage for assembling long messages (REST API, MQTT reporting)

Definition at line 28 of file Gbox420_Mega_Main.ino.

ShortMessage

char ShortMessage[MaxShotTextLength]

extern

Temp storage for assembling short text messages (Log entries, Error messages,etc)

Definition at line 29 of file Gbox420_Mega_Main.ino.
