Gbox420_Nano_Reservoir.ino File Reference

Reservoir module for Nano. More...

#include "Arduino.h"
#include "avr/wdt.h"
#include "avr/boot.h"
#include "printf.h"
#include "Thread.h"
#include "StaticThreadController.h"
#include "SPI.h"
#include "RF24.h"
#include "SerialLog.h"
#include "Settings.h"
#include "src/Modules/ReservoirModule.h"
#include "src/WirelessCommands_Reservoir.h"

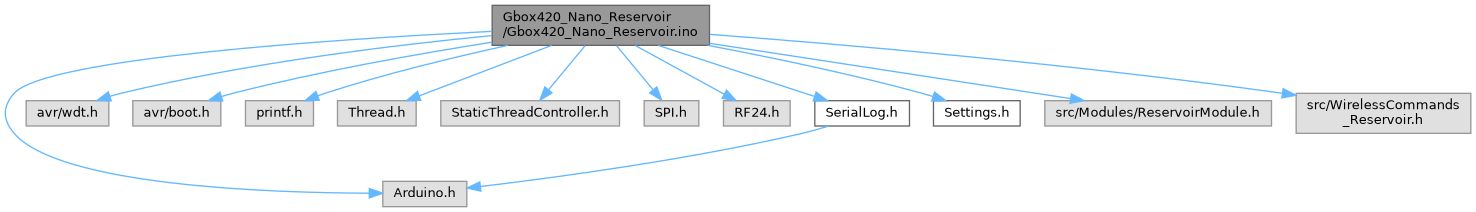

Include dependency graph for Gbox420_Nano_Reservoir.ino:

Go to the source code of this file.

Functions
RF24	Wireless (WirelessCEPin, WirelessCSNPin)
void	setup ()
void	InitializeWireless ()
void	loop ()
void	run1sec ()
void	run5sec ()
void	run1min ()
void	getWirelessData ()
void	getWirelessStatus ()
time_t	updateTime ()

Variables
bool &	Debug = *new bool
bool &	Metric = *new bool
char	LongMessage [MaxLongTextLength] = ""
	Temp storage for assembling long messages (REST API, MQTT reporting)
char	ShortMessage [MaxShotTextLength] = ""
	Temp storage for assembling short text messages (Log entries, Error messages,etc)
char	CurrentTime [MaxWordLength] = ""
	Buffer for storing current time in text format.
void *	ReceivedMessage = malloc(WirelessPayloadSize)
uint32_t	ReceivedMessageTimestamp = millis()
HardwareSerial &	ArduinoSerial = Serial
	Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)
Settings *	ModuleSettings
ReservoirModule *	ReservoirMod1
Thread	OneSecThread = Thread()
Thread	FiveSecThread = Thread()
Thread	MinuteThread = Thread()

Detailed Description

Reservoir module for Nano.

To change the default pin layout / startup settings navigate to: Settings.h

Runs autonomously on an Arduino RF-Nano or Arduino Nano with an nRF24L01+ wireless transceiver.

Supports wireless data exchange with the Main module

Author

GrowBoxGuy - https://sites.google.com/site/growboxguy/

Version

4.20

Definition in file Gbox420_Nano_Reservoir.ino.

Function Documentation

getWirelessData()

void getWirelessData

(

)

Definition at line 133 of file Gbox420_Nano_Reservoir.ino.

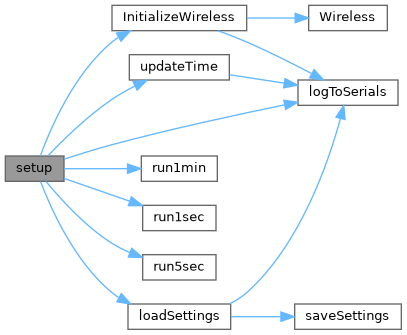

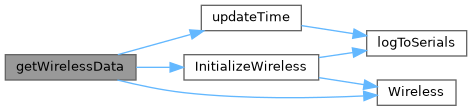

Here is the call graph for this function:

Here is the caller graph for this function:

getWirelessStatus()

void getWirelessStatus

(

)

Definition at line 153 of file Gbox420_Nano_Reservoir.ino.

Here is the call graph for this function:

InitializeWireless()

void InitializeWireless

(

)

< Set the speed to slow - has longer range + No need for faster transmission, Other options: RF24_2MBPS, RF24_1MBPS

< RF24_CRC_8 for 8-bit or RF24_CRC_16 for 16-bit

< RF24_PA_MIN=-18dBm, RF24_PA_LOW=-12dBm, RF24_PA_HIGH=-6dBm, and RF24_PA_MAX=0dBm.

< The number of bytes in the payload. This implementation uses a fixed payload size for all transmissions

< Not necessary, startListening should switch back to normal power mode

< Dump all previously cached but unsent ACK messages from the TX FIFO buffer (Max 3 are saved)

< Dump all previously received messages from the RX FIFO buffer (Max 3 are saved)

< Reset timeout counter

Definition at line 79 of file Gbox420_Nano_Reservoir.ino.

Here is the call graph for this function:

Here is the caller graph for this function:

loop()

void loop

(

)

Definition at line 103 of file Gbox420_Nano_Reservoir.ino.

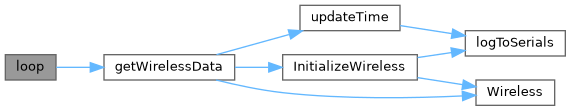

Here is the call graph for this function:

run1min()

void run1min

(

)

Definition at line 124 of file Gbox420_Nano_Reservoir.ino.

Here is the caller graph for this function:

run1sec()

void run1sec

(

)

Definition at line 112 of file Gbox420_Nano_Reservoir.ino.

Here is the caller graph for this function:

run5sec()

void run5sec

(

)

Definition at line 118 of file Gbox420_Nano_Reservoir.ino.

Here is the caller graph for this function:

setup()

void setup

(

)

Definition at line 44 of file Gbox420_Nano_Reservoir.ino.

Here is the call graph for this function:

updateTime()

time_t updateTime

(

)

Definition at line 163 of file Gbox420_Nano_Reservoir.ino.

Here is the call graph for this function:

Here is the caller graph for this function:

Wireless()

RF24 Wireless	(	WirelessCEPin	,
		WirelessCSNPin
	)

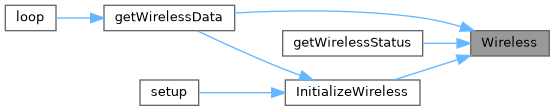

Here is the caller graph for this function:

Variable Documentation

ArduinoSerial

HardwareSerial& ArduinoSerial = Serial

Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)

Printing serial messages to the Arduino Serial output.

Uses templating to handle logging multiple variable types (int,float,char,bool..)

Functions implemented in header file due to: https://stackoverflow.com/questions/10632251/undefined-reference-to-template-function

Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)

Printing serial messages to the Arduino Serial output and the esp-link Microcontroller Console (uC Console)

Reference to the Arduino Serial

Definition at line 33 of file Gbox420_Nano_Reservoir.ino.

CurrentTime

char CurrentTime[MaxWordLength] = ""

Buffer for storing current time in text format.

Definition at line 28 of file Gbox420_Nano_Reservoir.ino.

Debug

bool& Debug = *new bool

Definition at line 24 of file Gbox420_Nano_Reservoir.ino.

FiveSecThread

Thread FiveSecThread = Thread()

Definition at line 40 of file Gbox420_Nano_Reservoir.ino.

LongMessage

char LongMessage[MaxLongTextLength] = ""

Temp storage for assembling long messages (REST API, MQTT reporting)

Definition at line 26 of file Gbox420_Nano_Reservoir.ino.

Metric

bool& Metric = *new bool

Definition at line 25 of file Gbox420_Nano_Reservoir.ino.

MinuteThread

Thread MinuteThread = Thread()

Definition at line 41 of file Gbox420_Nano_Reservoir.ino.

ModuleSettings

Settings* ModuleSettings

Definition at line 34 of file Gbox420_Nano_Reservoir.ino.

OneSecThread

StaticThreadController<3> ThreadControl& OneSecThread = Thread()

Definition at line 39 of file Gbox420_Nano_Reservoir.ino.

ReceivedMessage

void* ReceivedMessage = malloc(WirelessPayloadSize)

Definition at line 29 of file Gbox420_Nano_Reservoir.ino.

ReceivedMessageTimestamp

uint32_t ReceivedMessageTimestamp = millis()

Definition at line 30 of file Gbox420_Nano_Reservoir.ino.

ReservoirMod1

ReservoirModule* ReservoirMod1

Definition at line 35 of file Gbox420_Nano_Reservoir.ino.

ShortMessage

char ShortMessage[MaxShotTextLength] = ""

Temp storage for assembling short text messages (Log entries, Error messages,etc)

Definition at line 27 of file Gbox420_Nano_Reservoir.ino.
