ELClientRest Class Reference

#include <ELClientRest.h>

Public Member Functions
	ELClientRest (ELClient *e)
	Constructor for ELClientRest.
int	begin (const char *host, uint16_t port=80, boolean security=false)
	Initialize communication to a REST server.
void	request (const char *path, const char *method, const char *data=NULL)
	Send request to REST server.
void	request (const char *path, const char *method, const char *data, int len)
	Send request to REST server.
void	get (const char *path, const char *data=NULL)
	Send GET request to REST server.
void	post (const char *path, const char *data)
	Send POST request to REST server.
void	put (const char *path, const char *data)
	Send PUT request to REST server.
void	del (const char *path)
	Send DELETE request to REST server.
uint16_t	getResponse (char *data, uint16_t maxLen)
	Retrieve response.
uint16_t	waitResponse (char *data, uint16_t maxLen, uint32_t timeout=DEFAULT_REST_TIMEOUT)
	Wait for the response.
void	setUserAgent (const char *value)
	Set user agent of header.
void	setContentType (const char *value)
	Set content type of header.
void	setHeader (const char *value)
	Set generic header content.

Detailed Description

Definition at line 39 of file ELClientRest.h.

Constructor & Destructor Documentation

ELClientRest()

ELClientRest::ELClientRest

(

ELClient *

e

)

Constructor for ELClientRest.

ELClientRest(ELClient *e)

Parameters

e	Pointer to ELClient structure

Example

ELClientRest(ELClient *e);

Definition at line 26 of file ELClientRest.cpp.

Member Function Documentation

begin()

int ELClientRest::begin	(	const char *	host,
		uint16_t	port = 80,
		boolean	security = false
	)

Initialize communication to a REST server.

begin(const char* host, uint16_t port, boolean security)

Initialize communication to a remote server, this communicates with esp-link but does not open a connection to the remote server.

Parameters

host	Host to be connected. Can be a URL or an IP address in the format of xxx.xxx.xxx.xxx .
port	Port to be used to send/receive packets. Port MUST NOT be 80, 23 or 2323, as these ports are already used by EL-CLIENT on the ESP8266
security	Flag if secure connection should be established

Warning

Port MUST NOT be 80, 23 or 2323, as these ports are already used by EL-CLIENT on the ESP8266. Max 4 connections are supported!

Example

int err = rest.begin("www.timeapi.org");
if (err != 0)
{
    Serial.print("REST begin failed: ");
    Serial.println(err);
    while(1) ;
}

Definition at line 78 of file ELClientRest.cpp.

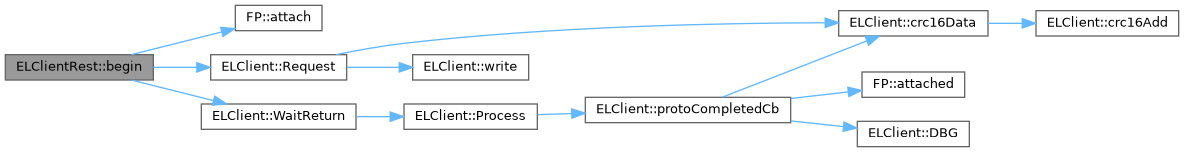

Here is the call graph for this function:

del()

void ELClientRest::del

(

const char *

path

)

Send DELETE request to REST server.

del(const char* path)

Parameters

path	Path that extends the URL of the REST request (command or data for the REST server)

Example

no example code yet

Definition at line 217 of file ELClientRest.cpp.

Here is the call graph for this function:

get()

void ELClientRest::get	(	const char *	path,
		const char *	data = NULL
	)

Send GET request to REST server.

get(const char* path, const char* data)

Warning

The received data might not be null-terminated.

Parameters

path	Path that extends the URL of the REST request (command or data for the REST server)
data	Pointer to data buffer

Example

// Request /utc/now from the previously set-up server
rest.get("/utc/now");

Definition at line 159 of file ELClientRest.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

getResponse()

uint16_t ELClientRest::getResponse	(	char *	data,
		uint16_t	maxLen
	)

Retrieve response.

getResponse(char* data, uint16_t maxLen)

Checks if a response from the remote server was received, returns the HTTP status code or 0 if no response (may need to wait longer)

Parameters

data	Pointer to buffer for received packet
maxLen	Size of buffer for received packet. If the received packet is larger than the buffer, the received packet will be truncated.

Returns

uint16_t Size of received packet or number of sent bytes or 0 if no response

Example

#define BUFLEN 266
void loop()
{
    // process any callbacks coming from esp_link
    esp.Process();
    void loop()
    {
        // process any callbacks coming from esp_link
        esp.Process();
        // if we're connected make an HTTP request
        if(wifiConnected)
        {
            // Request /utc/now from the previously set-up server
            rest.get("/utc/now");
            char response[BUFLEN];
            memset(response, 0, BUFLEN);
            uint16_t code = rest.waitResponse(response, BUFLEN);
            if(code == HTTP_STATUS_OK)
            {
                Serial.println("ARDUINO: GET successful:");
                Serial.println(response);
            }
            else
            {
                Serial.print("ARDUINO: GET failed: ");
                Serial.println(code);
            }
            delay(1000);
        }
    }
}

Definition at line 321 of file ELClientRest.cpp.

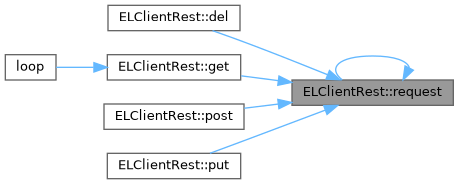

Here is the caller graph for this function:

post()

void ELClientRest::post	(	const char *	path,
		const char *	data
	)

Send POST request to REST server.

post(const char* path, const char* data)

Warning

The received data must be null-terminated.

Parameters

path	Path that extends the URL of the REST request (command or data for the REST server)
data	Pointer to data buffer

Example

// Generate a fake value starting from 100 going up to 300
solarValue = solarValue + 0.5;
if (solarValue == 300)
{
    solarValue = 100;
}
String solarValString = String(solarValue);
const char *solarValChar = solarValString.c_str();
// Reserve a buffer for sending the data
char path_data[BUFLEN];
// Copy the path and API key into the buffer
sprintf(path_data, "%s", "/update?api_key=");
sprintf(path_data + strlen(path_data), "%s", api_key);
// Copy the field number and value into the buffer
// If you have more than one field to update,
// repeat and change field1 to field2, field3, ...
sprintf(path_data + strlen(path_data), "%s", "&field1=");
sprintf(path_data + strlen(path_data), "%s", solarValChar);
// Send PUT request to thingspeak.com
rest.post(path_data,"");

Definition at line 192 of file ELClientRest.cpp.

Here is the call graph for this function:

put()

void ELClientRest::put	(	const char *	path,
		const char *	data
	)

Send PUT request to REST server.

put(const char* path, const char* data)

Warning

The received data must be null-terminated.

Parameters

path	Path that extends the URL of the REST request (command or data for the REST server)
data	Pointer to data buffer

Example

no example code yet

Definition at line 206 of file ELClientRest.cpp.

Here is the call graph for this function:

request() [1/2]

void ELClientRest::request	(	const char *	path,
		const char *	method,
		const char *	data,
		int	len
	)

Send request to REST server.

request(const char* path, const char* method, const char* data, int len)

Parameters

path	Path that extends the URL of the REST request (command or data for the REST server)
method	REST method, allowed values are "GET", "POST", "PUT" or "DELETE"
data	Pointer to data buffer
len	Size of data buffer

Example

no example code yet

Definition at line 112 of file ELClientRest.cpp.

Here is the call graph for this function:

request() [2/2]

void ELClientRest::request	(	const char *	path,
		const char *	method,
		const char *	data = NULL
	)

Send request to REST server.

request(const char* path, const char* method, const char* data)

The data must be null-terminated.

Parameters

path	Path that extends the URL of the REST request (command or data for the REST server)
method	REST method, allowed values are "GET", "POST", "PUT" or "DELETE"
data	Pointer to data buffer

Example

no example code yet

Definition at line 141 of file ELClientRest.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

setContentType()

void ELClientRest::setContentType

(

const char *

value

)

Set content type of header.

setContentType(const char* value)

If no content type is set, it defaults to "x-www-form-urlencoded"

Parameters

value

Content type

Example

no example code yet

Definition at line 248 of file ELClientRest.cpp.

Here is the call graph for this function:

setHeader()

void ELClientRest::setHeader

(

const char *

value

)

Set generic header content.

setHeader(const char* value)

If no generic header is set, it defaults to an empty string

Parameters

value

Header content

Example

no example code yet

Definition at line 229 of file ELClientRest.cpp.

Here is the call graph for this function:

setUserAgent()

void ELClientRest::setUserAgent

(

const char *

value

)

Set user agent of header.

setUserAgent(const char* value)

If no user agent is set, it defaults to "esp-link"

Parameters

value

User agent

Example

no example code yet

Definition at line 267 of file ELClientRest.cpp.

Here is the call graph for this function:

waitResponse()

uint16_t ELClientRest::waitResponse	(	char *	data,
		uint16_t	maxLen,
		uint32_t	timeout = DEFAULT_REST_TIMEOUT
	)

Wait for the response.

waitResponse(char* data, uint16_t maxLen, uint32_t timeout)

Wait for the response from the remote server for time_out, returns the HTTP status code, 0 if no response (may need to wait longer)

Warning

Blocks the Arduino code for 5 seconds! not recommended to use. Received packet is NOT null-terminated

Parameters

data	Pointer to buffer for received packet
maxLen	Size of buffer for received packet. If the received packet is larger than the buffer, the received packet will be truncated.
timeout	(optional) Timout in milli seconds to wait for a response, defaults to 5000ms

Returns

uint16_t Size of received packet or number of sent bytes or 0 if no response

Example

#define BUFLEN 266
void loop()
{
    // process any callbacks coming from esp_link
    esp.Process();
    // if we're connected make an HTTP request
    if(wifiConnected)
    {
        // Request /utc/now from the previously set-up server
        rest.get("/utc/now");
        char response[BUFLEN];
        memset(response, 0, BUFLEN);
        uint16_t code = rest.waitResponse(response, BUFLEN);
        if(code == HTTP_STATUS_OK)
        {
            Serial.println("ARDUINO: GET successful:");
            Serial.println(response);
        }
        else
        {
            Serial.print("ARDUINO: GET failed: ");
            Serial.println(code);
        }
        delay(1000);
    }
}

Definition at line 374 of file ELClientRest.cpp.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Gbox420_Mega_Main/ELClient/ELClientRest.h
• Gbox420_Mega_Main/ELClient/ELClientRest.cpp
