tcp_client.ino File Reference

#include <ELClient.h>
#include <ELClientSocket.h>
#include <SC16IS750.h>

Go to the source code of this file.

Functions
char *	getErrTxt (int16_t commError)
void	tcpCb (uint8_t resp_type, uint8_t client_num, uint16_t len, char *data)
void	wifiCb (void *response)
void	setup ()
void	loop ()

Variables
char *const tcpServer	PROGMEM = "192.168.0.102"
SC16IS750	i2cuart = SC16IS750(SC16IS750_PROTOCOL_I2C,SC16IS750_ADDRESS_AA)
ELClientSocket tcp &	esp
int	tcpConnNum
uint32_t	wait
uint32_t	waitTime
boolean	wifiConnected = false

Function Documentation

getErrTxt()

char * getErrTxt

(

int16_t

commError

)

Definition at line 68 of file tcp_client.ino.

Here is the caller graph for this function:

loop()

void loop

(

)

Definition at line 170 of file tcp_client.ino.

setup()

void setup

(

)

Definition at line 125 of file tcp_client.ino.

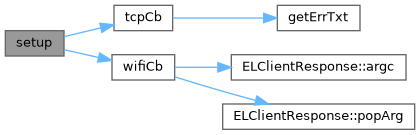

Here is the call graph for this function:

tcpCb()

void tcpCb	(	uint8_t	resp_type,
		uint8_t	client_num,
		uint16_t	len,
		char *	data
	)

Definition at line 79 of file tcp_client.ino.

Here is the call graph for this function:

Here is the caller graph for this function:

wifiCb()

void wifiCb

(

void *

response

)

Definition at line 108 of file tcp_client.ino.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

esp

ELClientSocket tcp& esp

Definition at line 36 of file tcp_client.ino.

i2cuart

ELClient esp & i2cuart = SC16IS750(SC16IS750_PROTOCOL_I2C,SC16IS750_ADDRESS_AA)

Definition at line 22 of file tcp_client.ino.

PROGMEM

uint16_t const udpPort2 PROGMEM = "192.168.0.102"

Simple example to demo the El-Client TCP client This example sends out a message to a TCP socket server and doesn't wait for a response from the server

Definition at line 12 of file tcp_client.ino.

tcpConnNum

int tcpConnNum

Definition at line 38 of file tcp_client.ino.

wait

uint32_t wait

Definition at line 41 of file tcp_client.ino.

waitTime

uint32_t waitTime

Definition at line 43 of file tcp_client.ino.

wifiConnected

boolean wifiConnected = false

Definition at line 45 of file tcp_client.ino.
