FP< retT, argT > Class Template Reference

API abstraction for a Function Pointers. More...

#include <FP.h>

Public Member Functions
	FP ()
template<class T >
void	attach (T *item, retT(T::*method)(argT))
void	attach (retT(*function)(argT))
retT	operator() (argT arg) const
bool	attached ()
void	detach ()

Detailed Description

template<class retT, class argT>
class FP< retT, argT >

API abstraction for a Function Pointers.

Example using the FP Class with global functions

#include "mbed.h"
#include "FP.h"

FP<void,bool>fp;
DigitalOut myled(LED1);

void handler(bool value)
{
    myled = value;
    return;
}

int main()
{
    fp.attach(&handler);

    while(1)
    {
        fp(1);
        wait(0.2);
        fp(0);
        wait(0.2);
    }
}

Example using the FP Class with different class member functions

#include "mbed.h"
#include "FP.h"

FP<void,bool>fp;
DigitalOut myled(LED4);

class Wrapper
{
public:
    Wrapper(){}

    void handler(bool value)
    {
        myled = value;
        return;
    }
};

int main()
{
    Wrapper wrapped;
    fp.attach(&wrapped, &Wrapper::handler);

    while(1)
    {
        fp(1);
        wait(0.2);
        fp(0);
        wait(0.2);
    }
}

Example using the FP Class with member FP and member function

#include "mbed.h"
#include "FP.h"

DigitalOut myled(LED2);

class Wrapper
{
public:
    Wrapper()
    {
        fp.attach(this, &Wrapper::handler);
    }

    void handler(bool value)
    {
        myled = value;
        return;
    }

    FP<void,bool>fp;
};

int main()
{
    Wrapper wrapped;

    while(1)
    {
        wrapped.fp(1);
        wait(0.2);
        wrapped.fp(0);
        wait(0.2);
    }
}

Definition at line 135 of file FP.h.

Constructor & Destructor Documentation

FP()

template<class retT , class argT >

FP< retT, argT >::FP

(

)

Create the FP object

Definition at line 27 of file FP.cpp.

Member Function Documentation

attach() [1/2]

template<class retT , class argT >

void FP< retT, argT >::attach

(

retT(*)(argT)

function

)

Add a callback function to the class

Parameters

function

- The address of a globally defined function

Definition at line 49 of file FP.cpp.

attach() [2/2]

template<class retT , class argT >

template<class T >

void FP< retT, argT >::attach ( T *  item, retT(T::*)(argT)  method  )

inline

Add a callback function to the class

Parameters

item	- Address of the initialized class
method	- Address of the member function (dont forget the scope that the function is defined in)

Definition at line 147 of file FP.h.

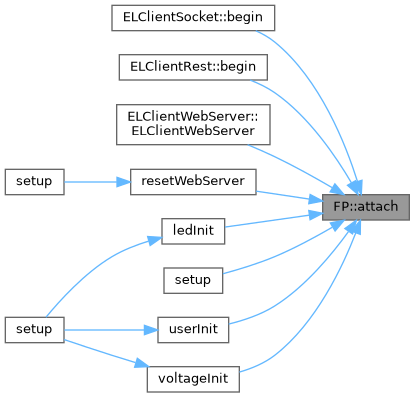

Here is the caller graph for this function:

attached()

template<class retT , class argT >

bool FP< retT, argT >::attached

(

)

Definition at line 34 of file FP.cpp.

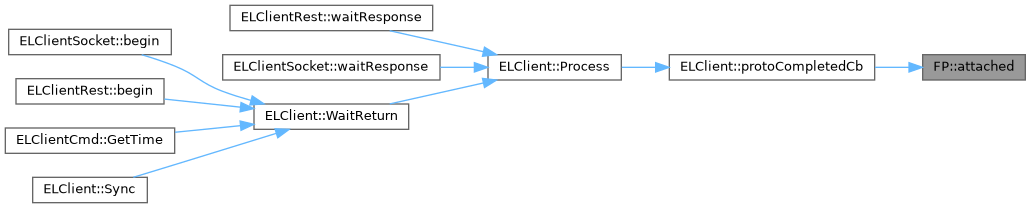

Here is the caller graph for this function:

detach()

template<class retT , class argT >

void FP< retT, argT >::detach

(

)

Definition at line 41 of file FP.cpp.

operator()()

template<class retT , class argT >

retT FP< retT, argT >::operator()

(

argT

arg

)

const

Invoke the function attached to the class

Parameters

arg	- An argument that is passed into the function handler that is called

Returns

The return from the function hanlder called by this class

Definition at line 55 of file FP.cpp.

Field Documentation

c_callback

template<class retT , class argT >

retT(* FP< retT, argT >::c_callback) (argT)

Footprint for a global function

Definition at line 182 of file FP.h.

method_callback

template<class retT , class argT >

retT(FPtrDummy::* FP< retT, argT >::method_callback) (argT)

Footprint for a member function

Definition at line 183 of file FP.h.

---

The documentation for this class was generated from the following files:

• Gbox420_Mega_Main/ELClient/FP.h
• Gbox420_Mega_Main/ELClient/FP.cpp
