webserver_controls.ino File Reference

#include <ELClient.h>
#include <ELClientWebServer.h>
#include "Pages.h"

Go to the source code of this file.

Functions
void	resetCb (void)
void	setup ()
void	loop ()

Variables
ELClient esp &	Serial
ELClientWebServer webServer &	esp

Function Documentation

loop()

void loop

(

)

Definition at line 58 of file webserver_controls.ino.

Here is the call graph for this function:

resetCb()

void resetCb

(

void

)

Definition at line 33 of file webserver_controls.ino.

Here is the caller graph for this function:

setup()

void setup

(

)

Definition at line 45 of file webserver_controls.ino.

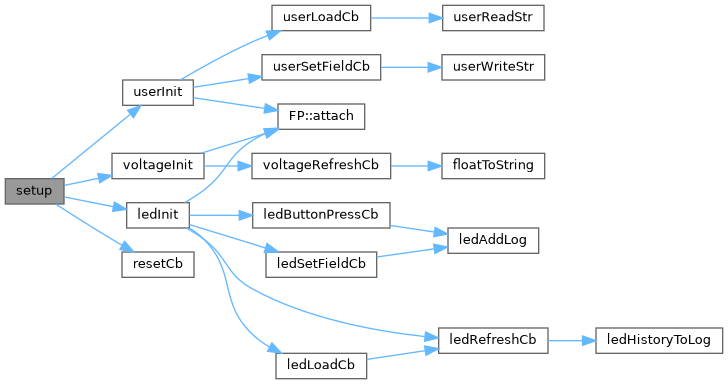

Here is the call graph for this function:

Variable Documentation

esp

ELClientWebServer webServer& esp

Definition at line 28 of file webserver_controls.ino.

Serial

ELClient esp& Serial

This is a sample for trying out each HTML control

Test board: ESP8266 RX <–level shifter--> Arduino TX ESP8266 TX <–level shifter--> Arduino RX ESP8266 GPIO0 <–level shifter--> Arduino RESET (optional)

Arduino LED is on PIN 13 Connect an 1K trimmer to Arduino (voltage): VCC <-> A0 <-> GND

Video: https://www.youtube.com/watch?v=vBESCO0UhYI

Definition at line 25 of file webserver_controls.ino.
